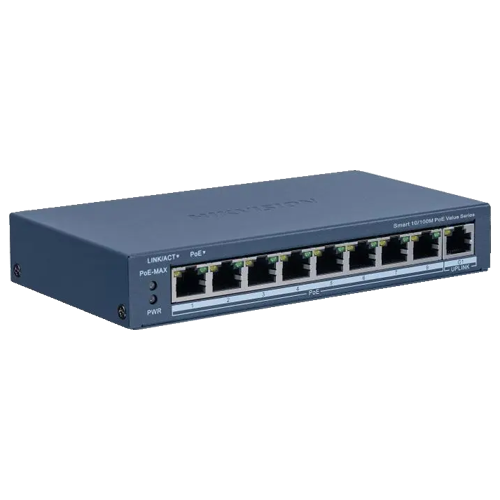

Switch 8 porturi PoE, 1 port uplink RJ45, Management – HIKVISION DS-3E1309P-EI-M

Switch-ul DS-3E1309P-EI-M de la Hikvision are urmatoarele caracteristici:

• Standarde: Conform cu standardele Ethernet IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab;
• Standarde PoE: IEEE 802.3at/af pentru porturile PoE;
• Transmisie extinsa: Suporta transmisie pe distante de pana la 300 m;
• Performanta: Forwarding la viteza maxima si comutare tip store-and-forward;
• Management inteligent: Monitorizare topologie retea, notificari alarme si monitorizare sanatate retea;
• Constructie durabila: Carcasa metalica de inalta rezistenta.

Producator: HIKVISION
Numar porturi PoE: 8 porturi 10/100Mbps
Putere PoE: total 60W max. 30W/port
Mod functionare: Standard (100m) / mod EXTENDED (300m)
Protectie: descarcari electrice 6 KV
Capacitate switch: 3.6 Gbps
Tensiune alimentare: 48 V DC 1.35A
Temperatura operare: 0°C ~ +40°C
Standard PoE: IEEE 802.3af IEEE802.3at
Greutate: 0.4 Kg.
Porturi Uplink: 1 × Gigabit RJ45
Consum: max. 65W
Dimensiuni: 170 × 27.6 × 93.1 mm
Management: Network topology management alarm push network health monitor Video Control and Preview;
Tabela adrese MAC: 8 K
Transmitere pachet date: 2.6784 Mpps
Memorie Cache: 4 Mbits
„
