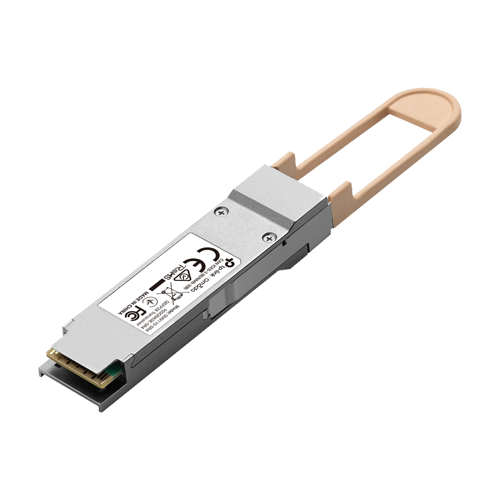

Modul QSFP28, 40/100G, MM, 100m, 850nm, MTP/MPO-12 – TP-Link Omada SM9110-SR4

Modulul are urmatoarele caracteristici cheie:

• Transceiver multi-mode 100GBASE-SR4 QSFP28;
• Suporta Digital Diagnostic Monitoring (DDM);
• Distanta de transmisie pana la 100 m;
• Hot-Pluggable, cu flexibilitate maxima.

Conector: MTP/MPO-12 Multi-mode
Viteza transmisie: 100 Gbps / 40 Gbps
Distanta transmisie: 100m
Producator: TP-Link Omada
Lungime de unda: 850 nm
Putere emisie: -8.4 ~ +2.4 dBm @103.125G / -7.6 ~ +2.4 dBm @41.2G
Temperatura de functionare: 0°C ~ +70°C
Format: QSFP28
Standarde: IEEE 802.3bm/ba QSFP28 MSA SFF-8665/8636/8436 CPRI eCPRI TCP/IP
„
